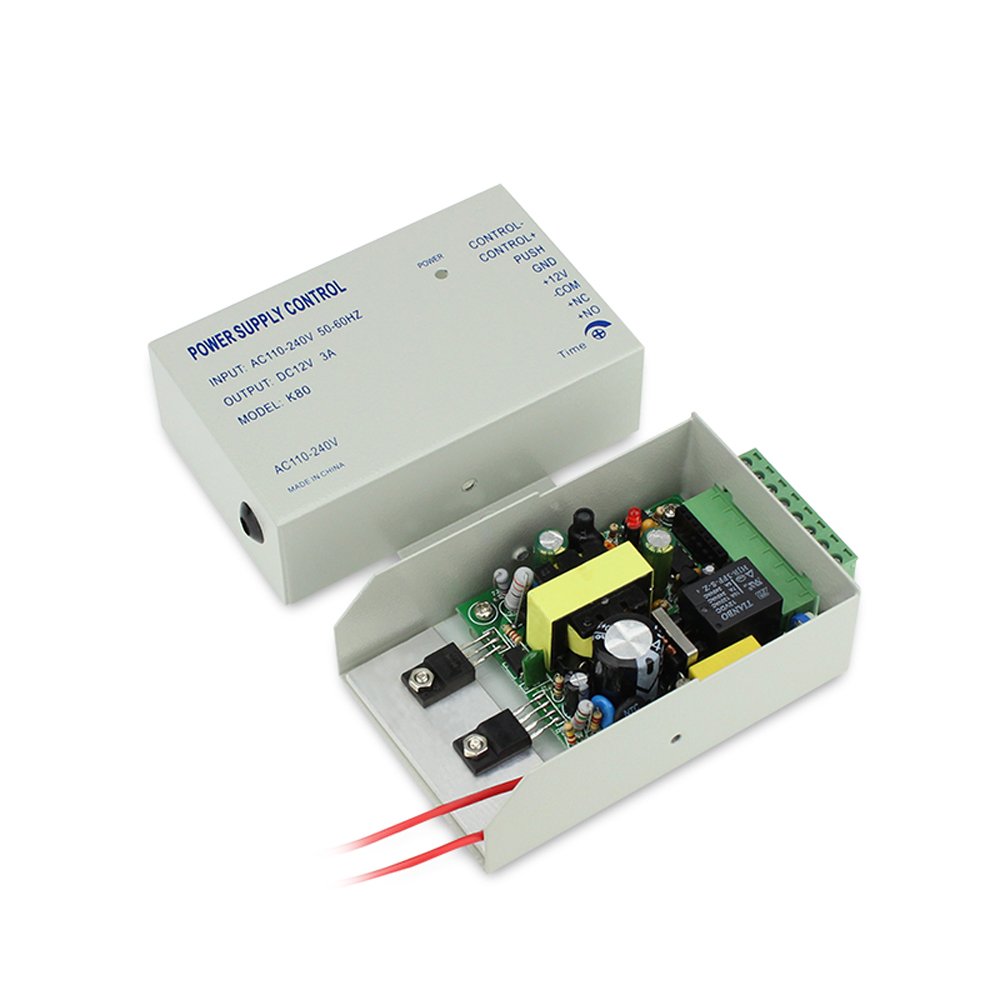

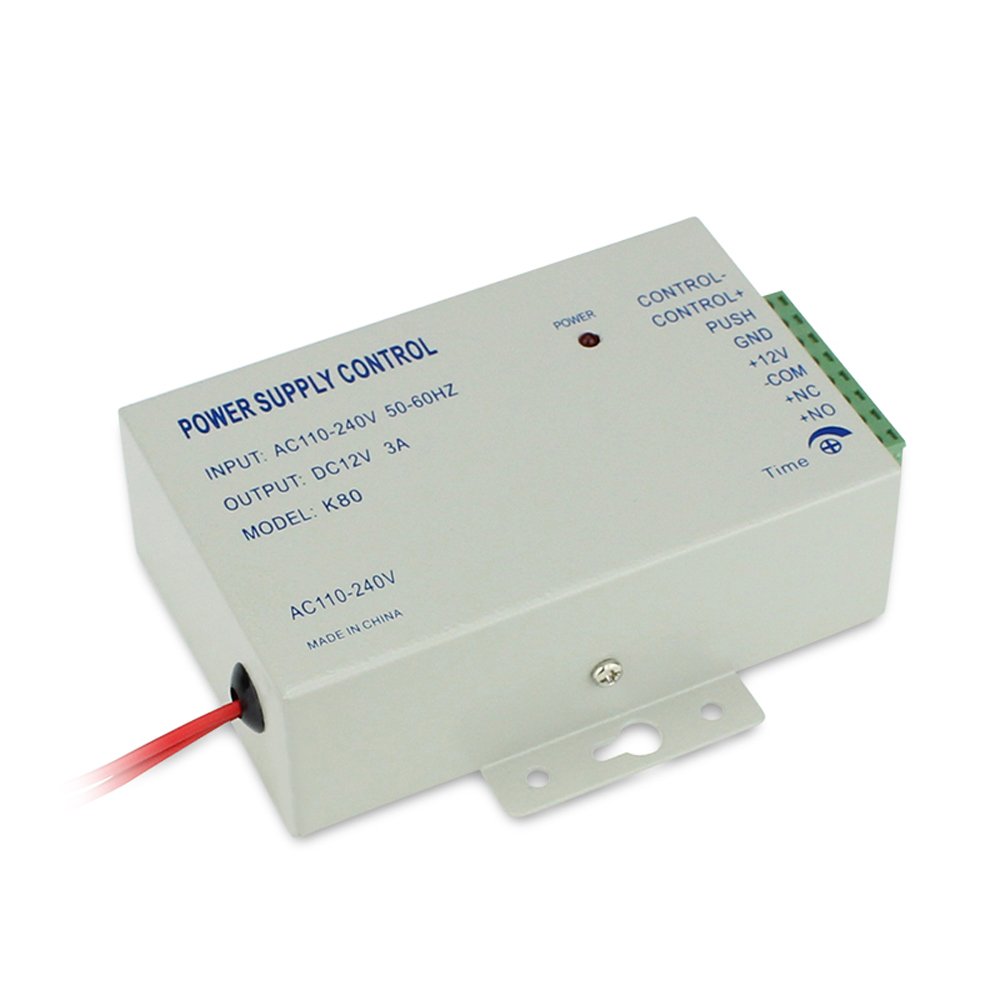

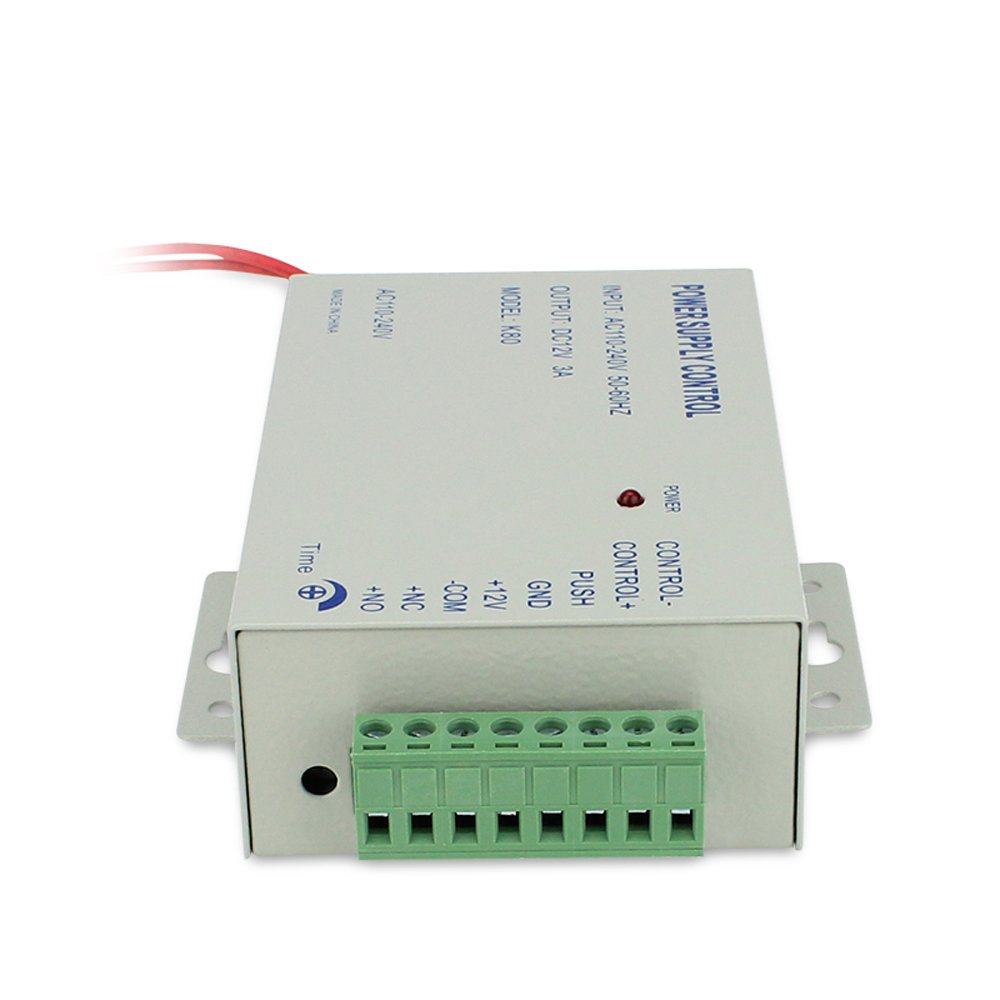

MENGQI-CONTROL Professional Power Supply Unit for Door Access Control System - 110~240V AC Input to 12V/3A DC Output - Ideal for Office Buildings, Smart Homes & Security Systems

Package include: 1 x Power supply Features: Compatible with E/M lock, access controller, exit push button and RFID reader Can reduce the load of access controller, save wiring to reduce the hidden trouble Set NC / NO outputs, can control various types of electric locks Based relay control circuit, lock time can be adjusted with 0 -15 seconds Automatic protection function for dangerous situation: overload / over voltage / short circuit Protection mechanism :power may be temporarily disconnected or the fuse auto insured Operative device: E/M Lock, access controller, exit push Button Compact design and light weight Worldwide voltage input 110 - 240v Note: This power supply can be used for 1 electric lock. Specifications: Input Voltage: AC 110 ~ 240V (Worldwide voltage) Input Frequency :50 ~ 60Hz Output Voltage: DC 12V/3A Output Voltage :Trim Range ±10% ~ ±15% Load :1% Typical Output Stability: 0.5% Typical Ripple and Noise: 1% peak to peak (100mVp - p typical) Insulation Voltage: - Junior / Sub-polar inter: 1500V AC - Primary / Shell Between 1500V AC - Sub-polar / Shell Between 500V AC Hold Time: Full Load Typically 20ms Operating Temperature: -20°C ~ 65°C Adjustable Locking Delay: 0 ~ 15sec Dimensions: - Approx. 120 (W) x 95 (H) x 38 (D) mm - Approx. 4-3/4" (W) x 3-3/4" (H) x 1-1/2" (D) inch
