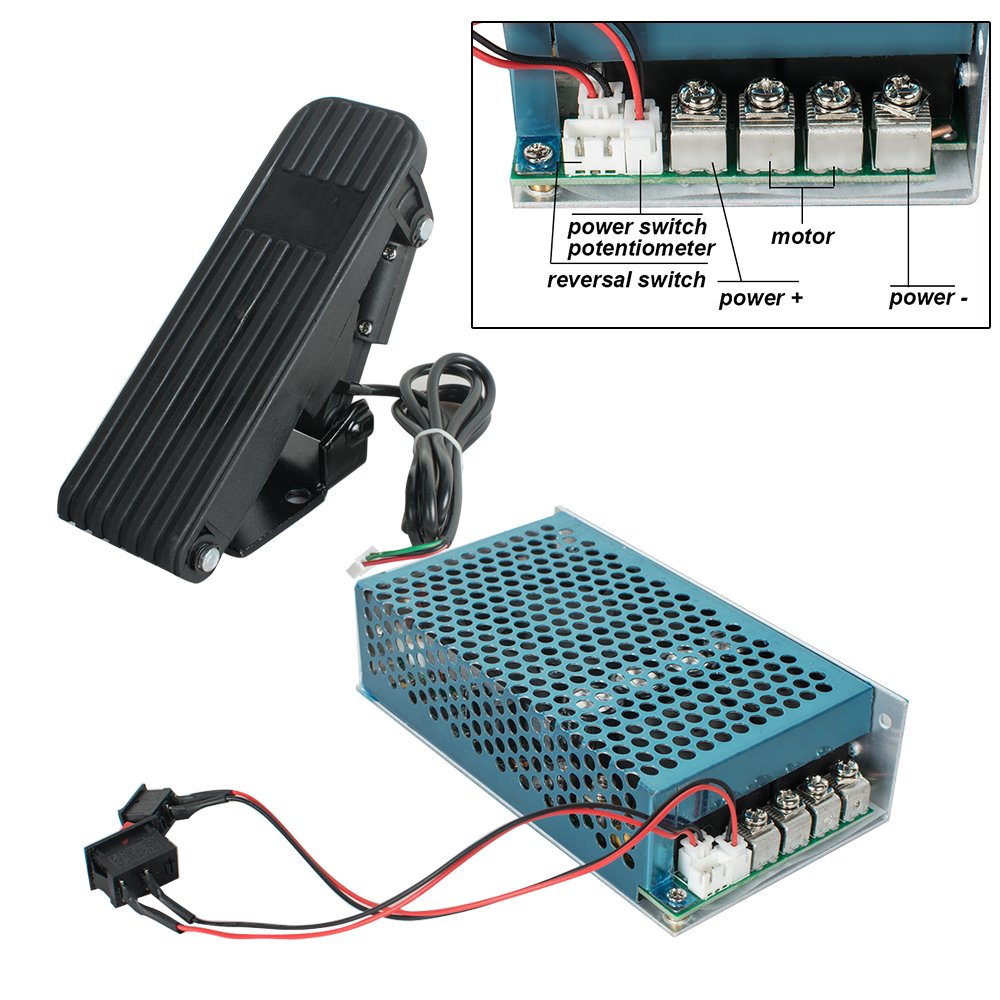

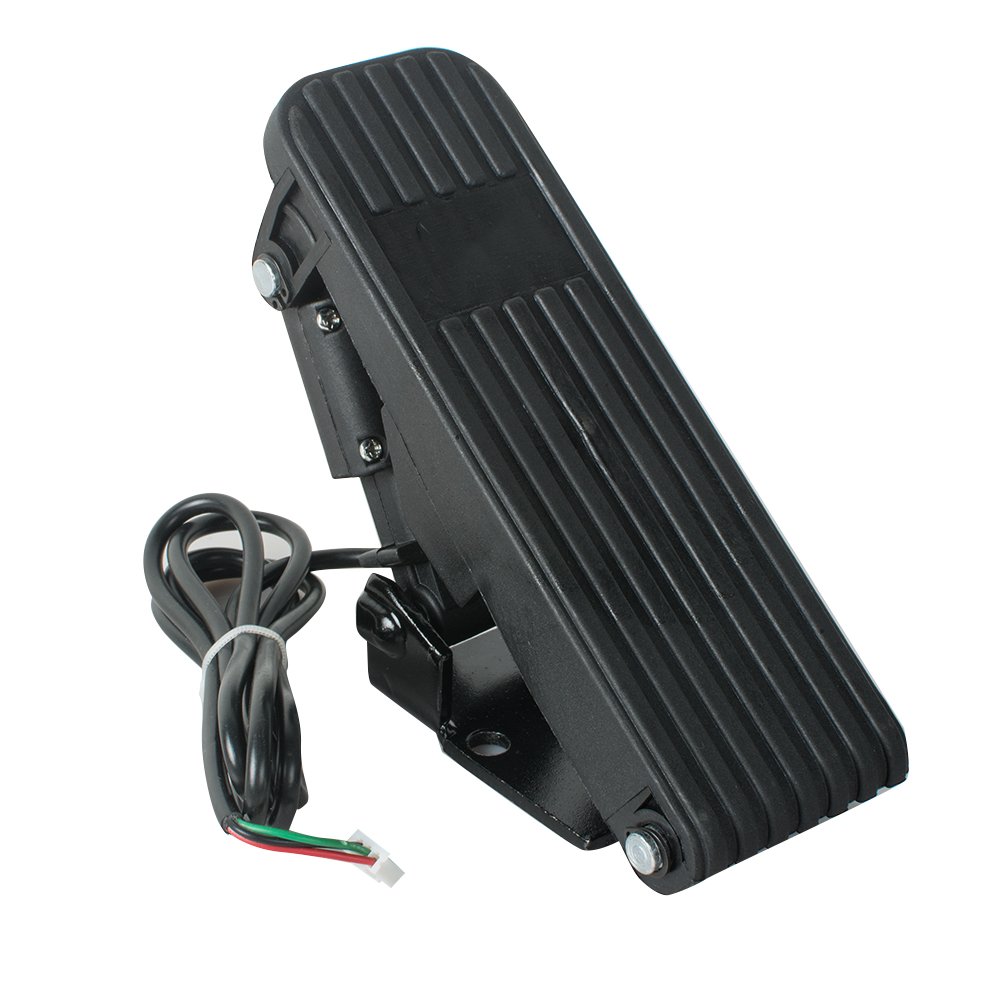

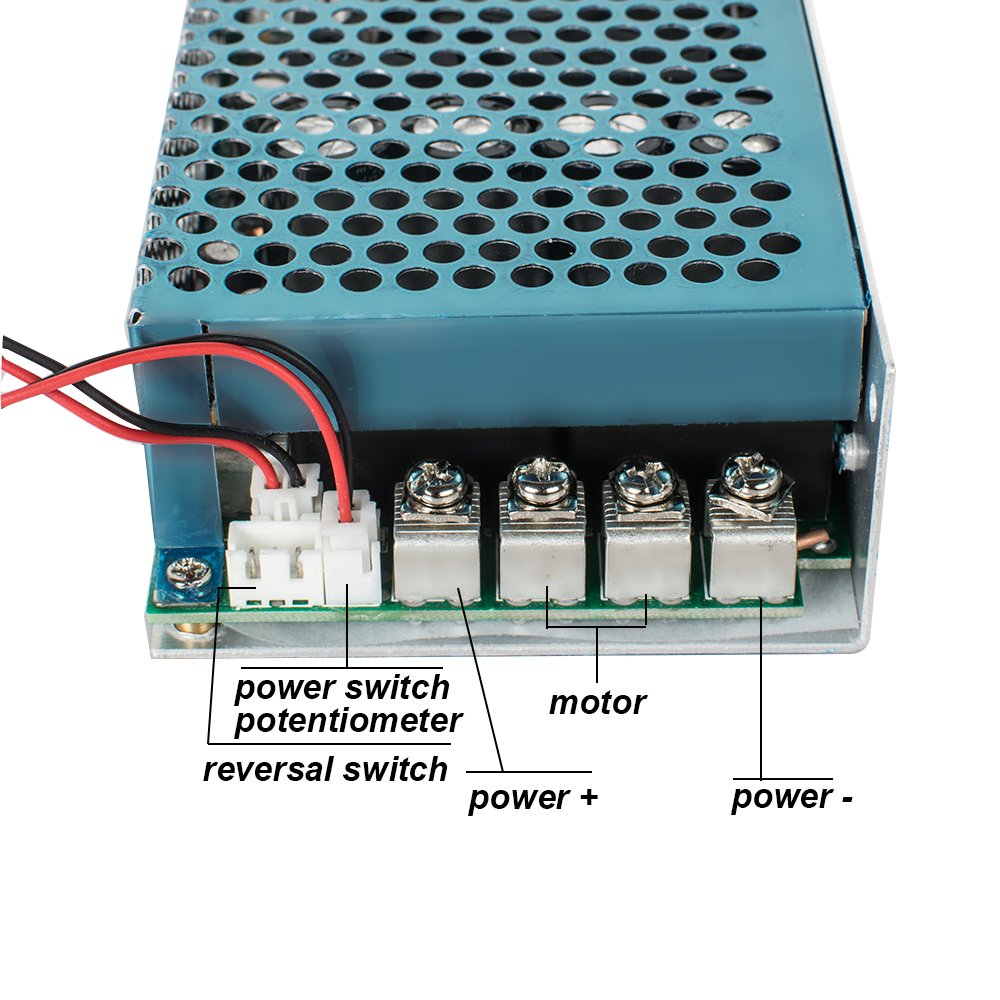

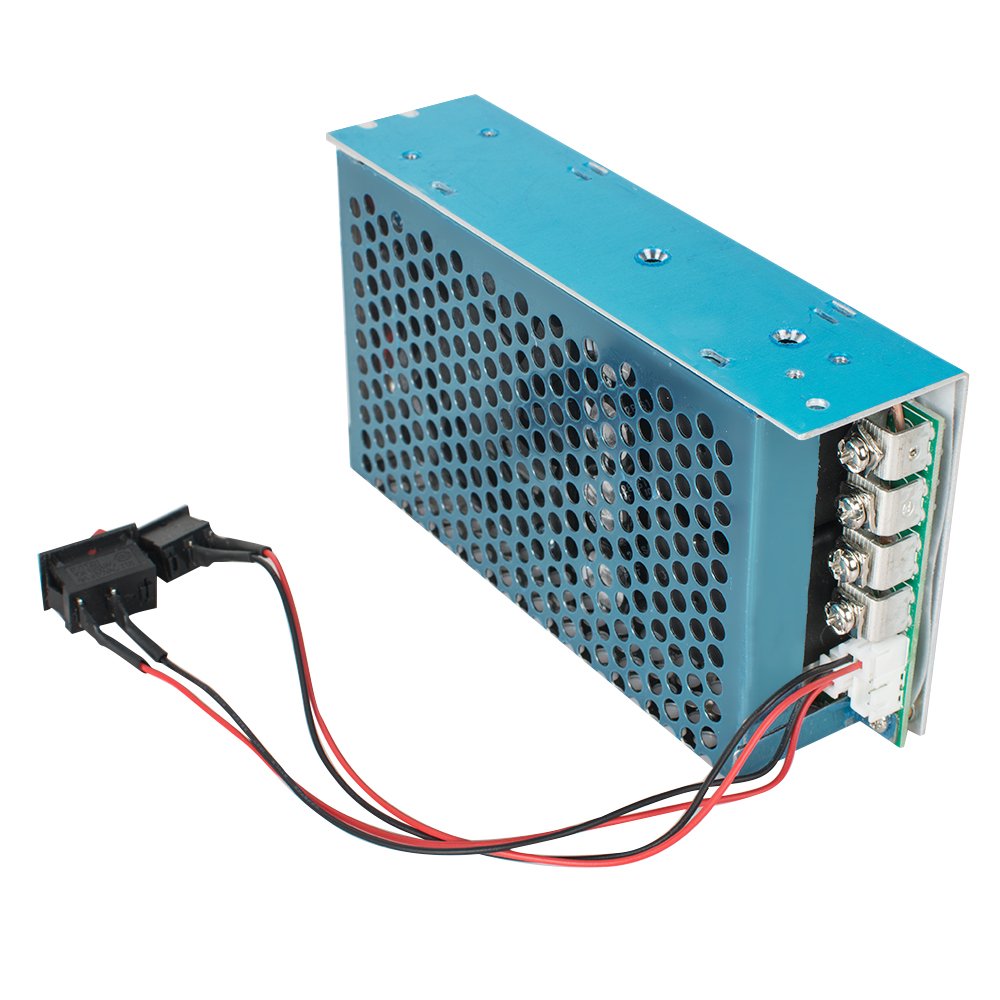

Specifications: Power requirement: DC 10-50VRated current: 60A (Max output current: 100A)Frequency: 15kHZControl Motor Power: 0.01-5000W,12V: 1200W(max),24V: 2400W(max) ,36V: 3600W(max),48V: 4800W(max), 50V: 5000W(max).Quiescent Current: 0.04ARegulation range: 0-100%Size: 5.7x3x1.49inchHow to use:There are two ON/OFF switch and one pedal accelerator on the controller. One OF/OFF is a reversal switch, another is power switch. Power on, then press the pedal, the motor will be accelerated.The power switch is on, the controller is powered on. The power switch off, the motor will be brake.The reversal switch on, the motor forward, the switch off, the motor backward. When the motor change the direction of the rotation, the motor will be braked and soft start to the setted speed.Package include:1 X Reversible DC Motor Speed Controller1 X Pedal Accelerator
Larger current, max current up to 100A, continuous operating current of up to 60A.
Reversing control motor, dual relay control, can withstand higher current.
Programmable to meet subsequent extensions.
With soft start to reduce the shock of large current when the motor starting.
With brake when the power off or change the rotation of the motor.
